1380mm 380V 1.1KW Energy Saving Poulrty Farm Exhaust Fan

1380mm 380V 1.1KW Energy Saving Poultry Farm Exhaust Fan Want to save 2,190 kWh per fan annually?Want your poultry to grow faster in an optimally controlled environment?Need a fan that automatically adjusts speed based on demand?Looking for a fan with superior IP66 corrosion resistance?Tired of belt failures crippling your ventilation system?Discover MAINTEX EC Direct-Drive poultry farm fans—The Ultimate Solution!

Product description

1380mm 380V 1.1KW Energy Saving Poultry Farm Exhaust Fan


Want to save 2,190 kWh per fan annually?
Want your poultry to grow faster in an optimally controlled environment?
Need a fan that automatically adjusts speed based on demand?
Looking for a fan with superior IP66 corrosion resistance?
Tired of belt failures crippling your ventilation system?

Discover MAINTEX EC Direct-Drive poultry farm fans—The Ultimate Solution!

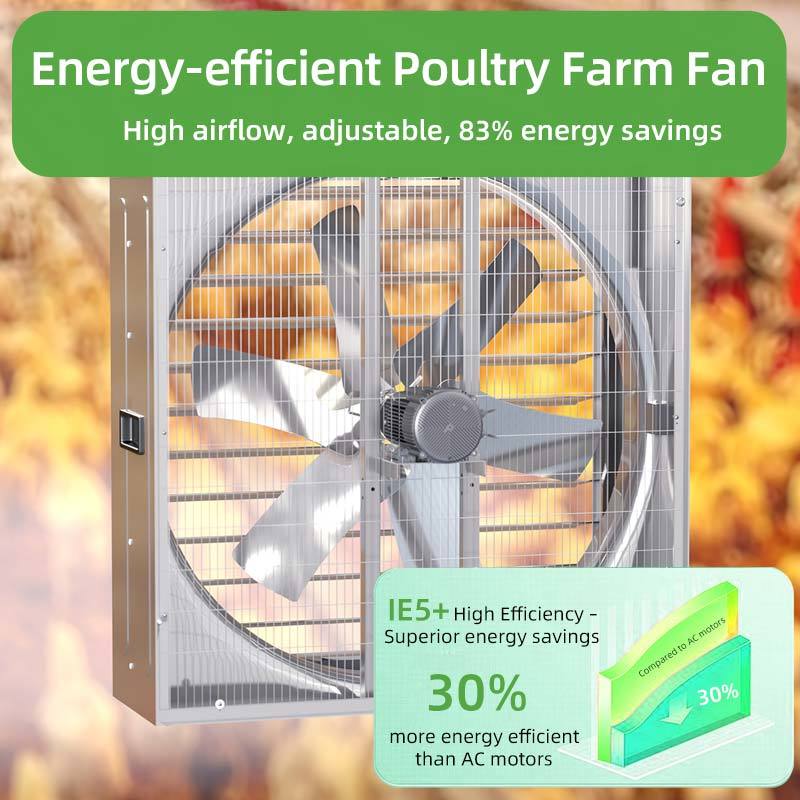

Energy-efficient poultry ventilation fan

Compared to conventional AC fans, MAINTEX poultry ventilation fans offer the following superior advantages:

    1.EC Motor Technology

  • 83% energy efficiency (vs. typical 60-70% for AC fans)
  • Electronically commutated for precise speed control

    2.Performance Excellence

  • 30% greater airflow (CFM) for faster ventilation
  • Ultra-low noise operation (<70 dB)

   3.Robust Construction

  • 1.2mm premium galvanized steel housing
  • Corrosion-resistant and durable design

   4.Technical Differentiation:

  • Energy Savings: Up to 30% lower power consumption than AC alternatives
  • Intelligent Control: Compatible with IoT speed regulation systems
  • Maintenance: Brushless design ensures longer service life

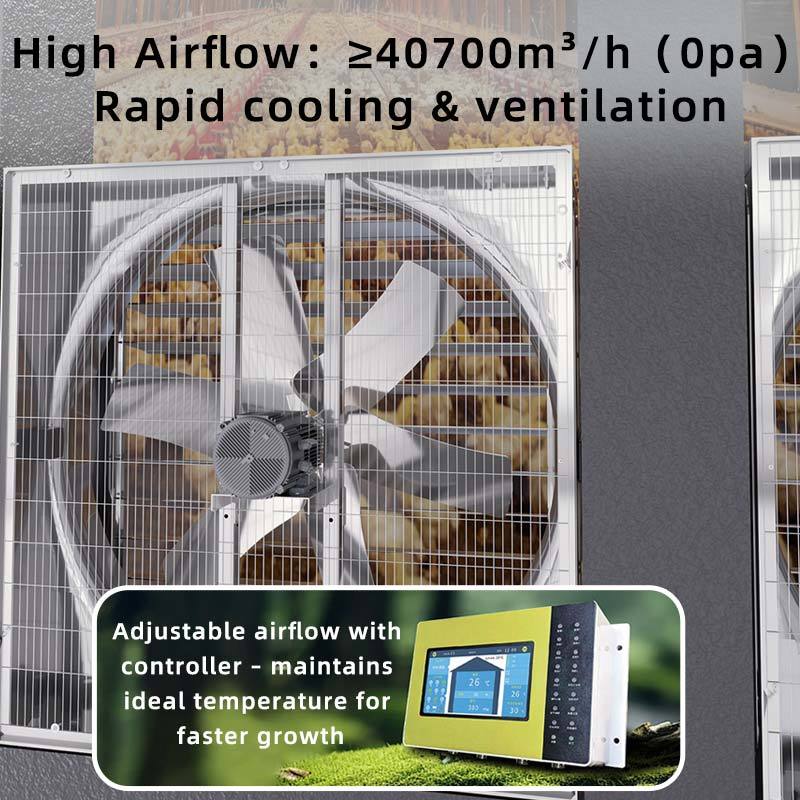

High-Capacity Poulrty Farm Exhaust Fan


1.Key Features:

  • High Airflow: ≥40700 m³/h(0 pa)
  • Rapid Cooling & Ventilation: 30% faster air exchange vs. conventional barn fans

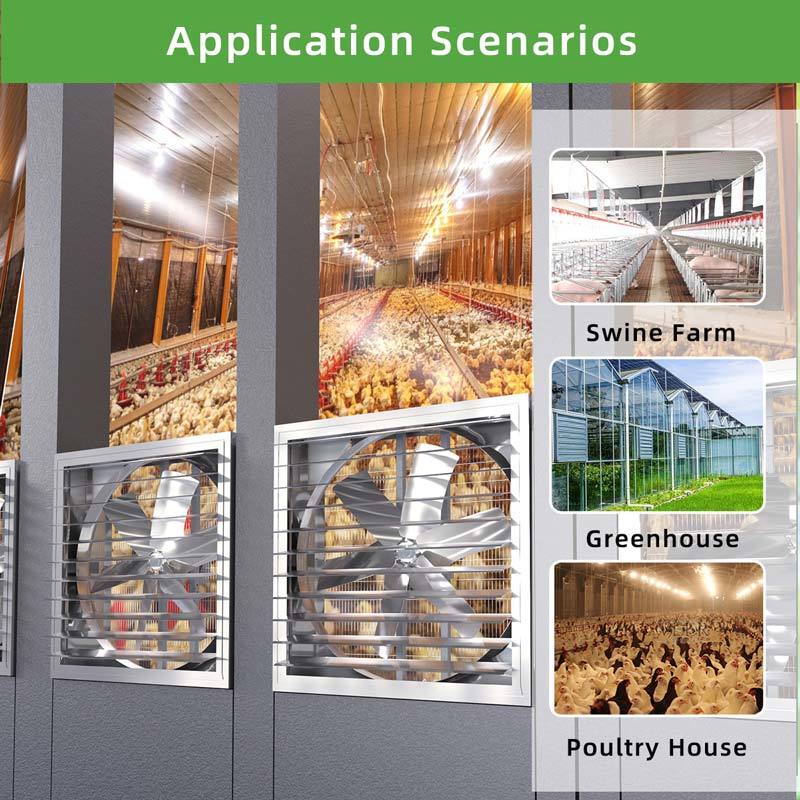

  • Universal Livestock Compatibility: Poultry/Dairy/Swine barns - reduces NH₃ & CO₂ concentrations
  • Aerodynamic Wide-Angle Blades: 20% energy savings while maintaining wind pressure

2.Smart Control System (Optional):

  • Multi-Fan Speed Controller: Centralized management of up to 32 fans
  • Programmable Airflow: Adjustable 30-100% capacity via touch panel
  • Precision Climate Management: Prevents animal stress disorders by maintaining optimal

3.Performance Benefits:

  • Reduces respiratory diseases in poultry by 45% (per AVMA studies)
  • Accelerates growth cycle by 12-15 days through thermal comfort
  • IP66-rated EC motor for dust/moisture resistance

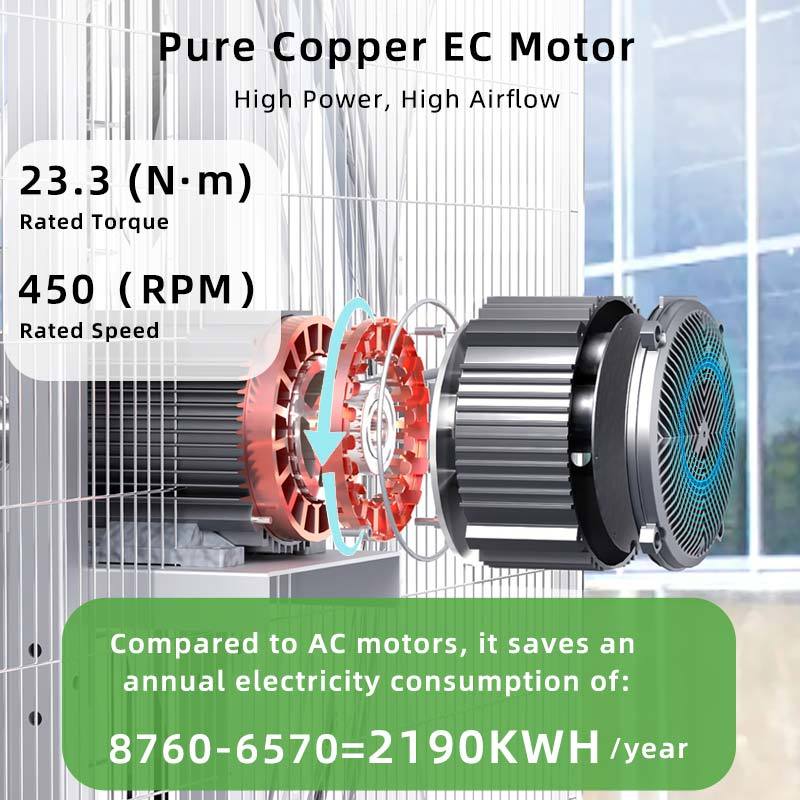

MAINTEX air circulation fan for poultry with Pure Copper EC Motor

Specifications:

  • High-Efficiency EC Motor
  • Power: 1,100W
  • Torque: 23.3Nm
  • Rated Speed: 450 RPM

Unmatched Energy Savings:
2,190 kWh annual savings vs. traditional AC motors (Equivalent to powering 3 average EU households for 6 months)
Why Farmers Choose This Poultry Exhaust Fan:
✓ For High Electricity Costs:
ROI in <18 months in countries with €0.30+/kWh rates
65% lower operating costs over 5-year lifespan
✓ For Eco-Conscious Farms:
Reduces CO₂ emissions by 1.8 tons/year per fan
Technical Footnotes:
*Savings calculation based on 24/7 operation at 70% load vs. IE2 AC motor
*Motor efficiency: 83% (IE5 equivalent)
*Corrosion-resistant epoxy coating for wet environments

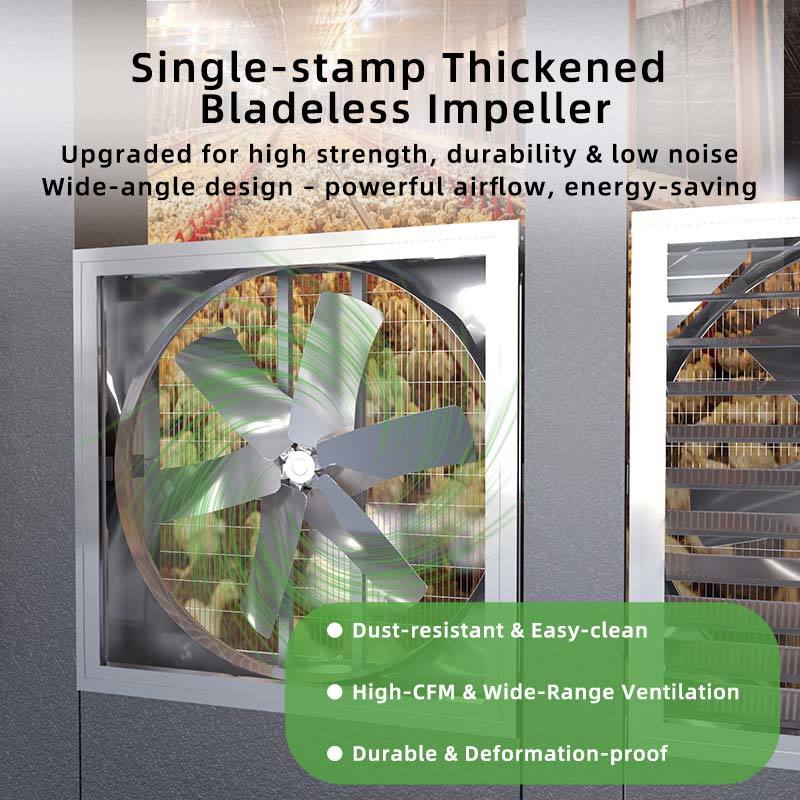

Cooling fan for poultry farm with stamped stainless steel blades

  • Upgraded for high strength, durability & low noise
  • Wide-angle design-powerful airflow,energy-saving

Compared to ordinary poultry exhaust fan blades, it offers the following advantages:

  • Dust-resistant & Easy-clean
  • High-CFM & Wide-Range Ventilation
  • Durable & Deformation-proof
  • High Airflow: 40700 m³/h (0 Pa)

Traditional Single-Speed AC Fans vs. MAINTEX EC Fans: A Smarter, Quieter, and Longer-Lasting Solution

Traditional AC Fans:

Fixed Speed Operation – Unable to adjust airflow based on temperature changes, often running at full load unnecessarily, wasting energy.

Excessive Wear & Tear – Constant high-speed operation strains the motor, shortening its lifespan.

MAINTEX EC Fans with Speed Control:


Intelligent Speed Adjustment – Equipped with a variable-speed controller, allowing you to set the ideal airflow based on temperature demands.
Reduced Mechanical Stress – No prolonged high-speed operation, significantly extending motor life.
Ultra-Quiet Performance – Operates below 60 dB, ensuring a peaceful environment for on-site staff to rest comfortably.

Upgrade to MAINTEX EC Technology—Efficient, Durable, and Worker-Friendly!

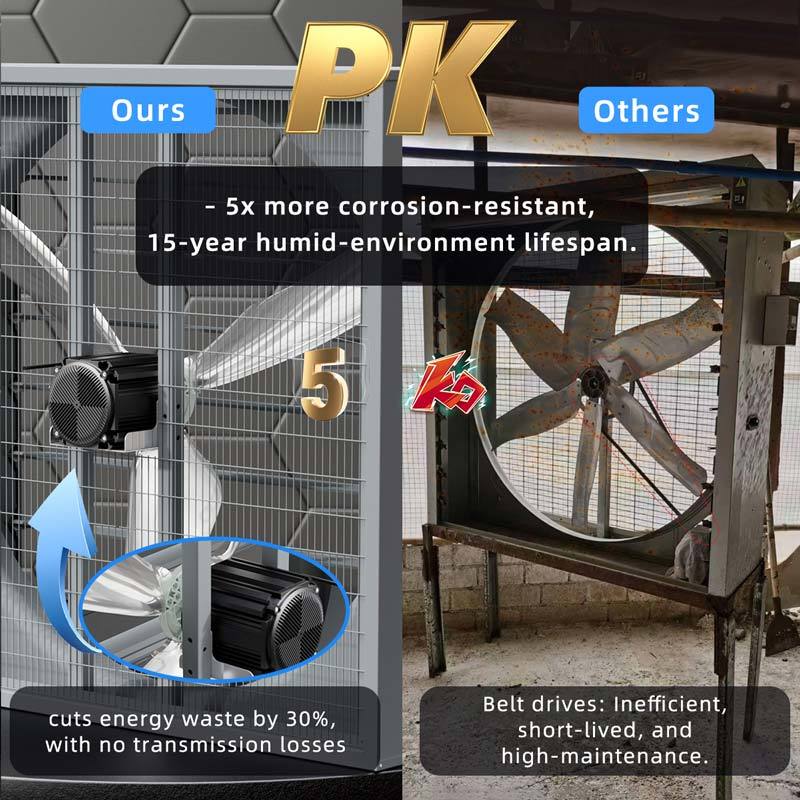

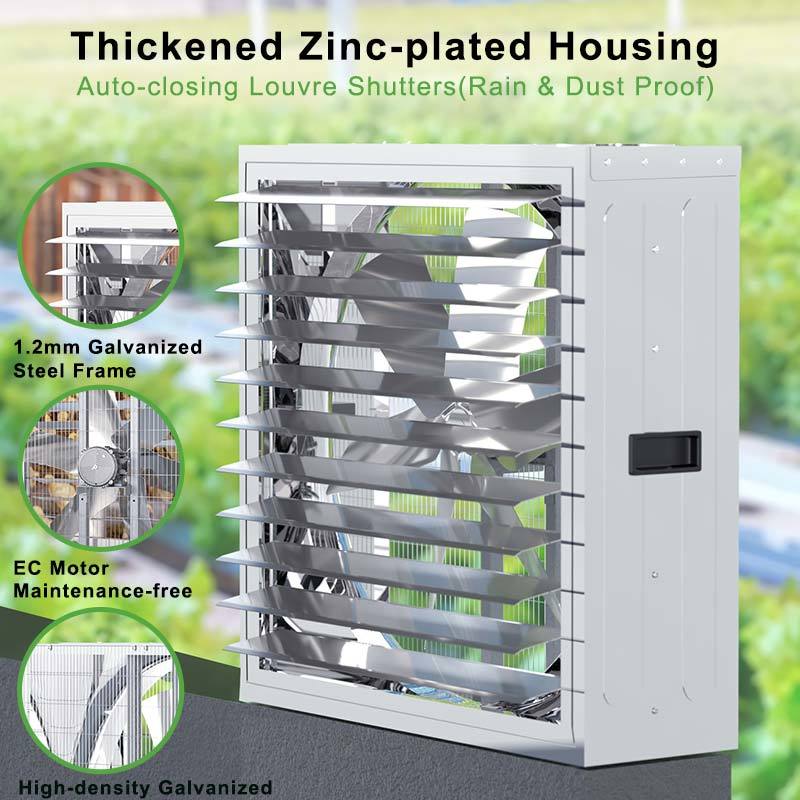

Heavy-Duty Anti-corrosion poultry house exhaust fan

This poultry house exhaust fan is equipped with 1.2mm-thick galvanized steel panels, offering 5 times better corrosion resistance than conventional greenhouse cooling fans. In humid environments, it guarantees a service life of at least 15 years.

An additional advantage is its direct-drive EC BLDC motor (instead of belt-driven systems), eliminating the hassle of belt replacements. This further reduces maintenance costs over time.

Product parameters

Model

Rated Voltage

Rated Power

Rated speed

MAPT-1380EQ-4R-02

380VAC

1100(W)

450(RPM)

Speed Range

Drive Loop

Fan Size

OperatingTemperature

220-480(RPM)

3-phase full wave

1400*1400(MM)

-20℃~45°C

Sensing Method

Rated Current

Phase,Poles

Protection Class

NO-Hall,FOC drive

2.64(A)

3 Phases 20 Poles

IP66

All EC motors can be customized in torque/ voltage/ size etc. Pls contact us for more details and requirements



FAQ:
Q1: How to choose a EC motor to match my greenhouse ventilation fans?

A: Please offer us the key parameters of the motor such as physical size (diameter, length, etc), torque, voltage, power consumption, etc. Feel free to reach out to us, we are very glad to help you if you are confused in selection.

Q2: Could you provide customized service?

A: Yes, we can. All parameters can be customized according to your actual demands, for detailed information please contact us or leave a message.

Q3: Can I order samples first?

A: We stock many of our standard models. If you would like to test samples first, we are glad to send you some. Of course we do not stock specialized motors. If you have special needs, please let us know.

Q4: Are you trading company or manufacturer?

A: we are a manufacturer which is located in Shenzhen China. We have our own industrial park——Maintex Science & Technology Park covering an area of 53000+ square meters. Q5: How long is your delivery time?

A: Generally about 5-10 days if the goods are in stock. Or it is 30 days if the goods are not in stock. It depends on the order quantity.

Q6: Do you provide samples?

A: Yes, sample can be offered in terms of your specific requirements.

Q7: What kind of payment terms are available?

A: We usually use TT and Paypal, but if you have special requirements, please talk with us.

Q8: How do you control your product's quality?

A: We have professional testing instruments and QC team, we will do full inspection for each mass production.

Q9: What about your production capability?

A: There are high precise auto assembly facilities and more than 60 assembly lines in our factory, we can produce more than 100 million pieces of motors per year.
