MAINTEX Product Catalog
Wholesale Low Noise 3 Phase 24V Small Bldc Fan Motor
Product description
Does your fan have issues with loud noise and frequently needing motor replacements? Maintex's small brushless motors are the perfect solution to your problems. With low electrical noise, no electromagnetic interference (EMI), and reduced mechanical noise, they operate without the characteristic "hissing" sound of brush friction. The primary sources of noise are bearings and wind resistance, resulting in smoother and quieter operation. Maintex's brushless motors, known for their high efficiency, reliability, and superior performance, are increasingly replacing traditional brushed motors as the preferred choice for modern power systems, especially in applications demanding high performance, longevity, and energy efficiency.
Why Choose Maintex as Your Small BLDC Fan Motor Supplier?
1.Custom design drawings can be provided within 3 days
2.200+ patent
3.2-year warranty (70-person R&D team,offering remote support)
4.Support OEM/ODM
5.Provide certificates and test reports, such as ISO9001, IATF 16949, CE, ROHS, REACH and so on.
6.Collaborated with fortunne 500 companies
7. MOQ:100PCS (Custom samples upon request)
8. 24-hour on-line service

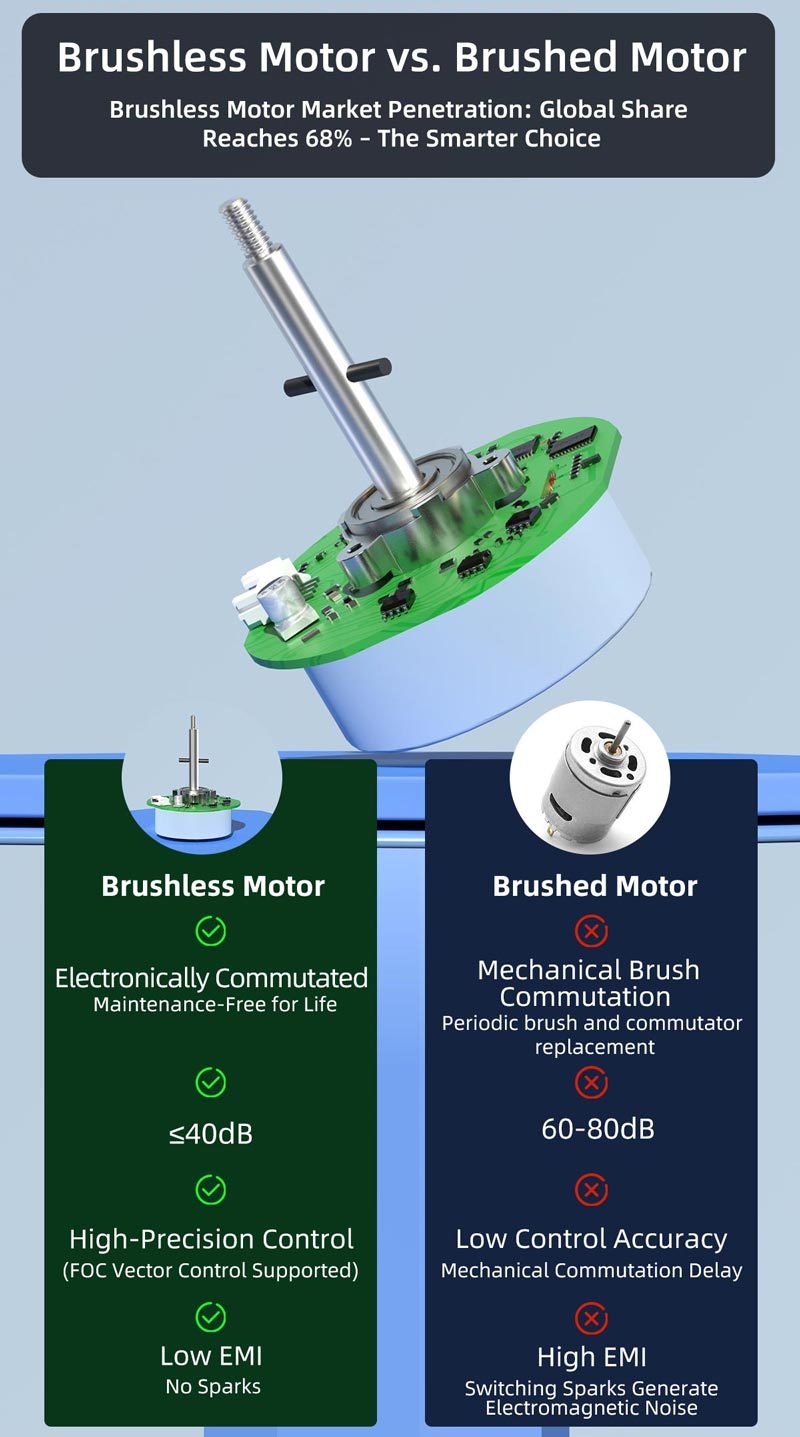

Brushless Motor Market Penetration: Global Share Reaches 68%-The Smarter Choice
Characteristic | Brushless motor | Brushed motor |
Working Principle | Electronic Commutation (Controller + Sensors) | Mechanical Commutation (Brushes + Commutator) |
Cost | High (requires matching controller) | Low (for the motor itself) |
Efficiency | High (~85-90%) | Relatively Low (~75-80%) |
Lifespan & Maintenance | Long, largely maintenance-free | Short, requires maintenance |
Speed & Speed Regulation | Speed can be very high, requires complex controller for regulation | Generally lower speed, simple speed regulation (adjust voltage) |
Control Precision | High (determined by the controller, enables precise speed and position control) | Relatively Low |
Noise | 40db | 80db |
EMI | Low EMI | High EMI |
Furthermore, we also support the design and manufacturing of more non-standard requirements, such as special coatings, materials, lubrication methods, and electromagnetic designs. No matter how unique your application scenario is, Maintex possesses robust engineering capabilities and production flexibility to provide motor solutions that truly fit your needs.
| Model No. | Rated voltage(V) | Speed (RPM) | No-Load Current (A) | Power (W) | Load Current (A) | Rated torque (mN.m) |
| BL3510-007 | 100 | 8500±10% | 1.5±0.2 | 80.0±10% | - | - |
| BL4808-001F | 24 | 2200±5% | < 0.3 | 22±4 | < 1.0 | 100 |
| BL4812-078A | 12 | 1800±10% | < 0.5 | 6±1 | < 1.0 | 30 |
| BL4812-087A | 12 | 2500±5% | < 0.3 | 15±3 | < 1.5 | 30 |
| BL5706-001A | 24 | 600~1800±5% | < 0.3 | 13±3 | < 1.0 | 36 |

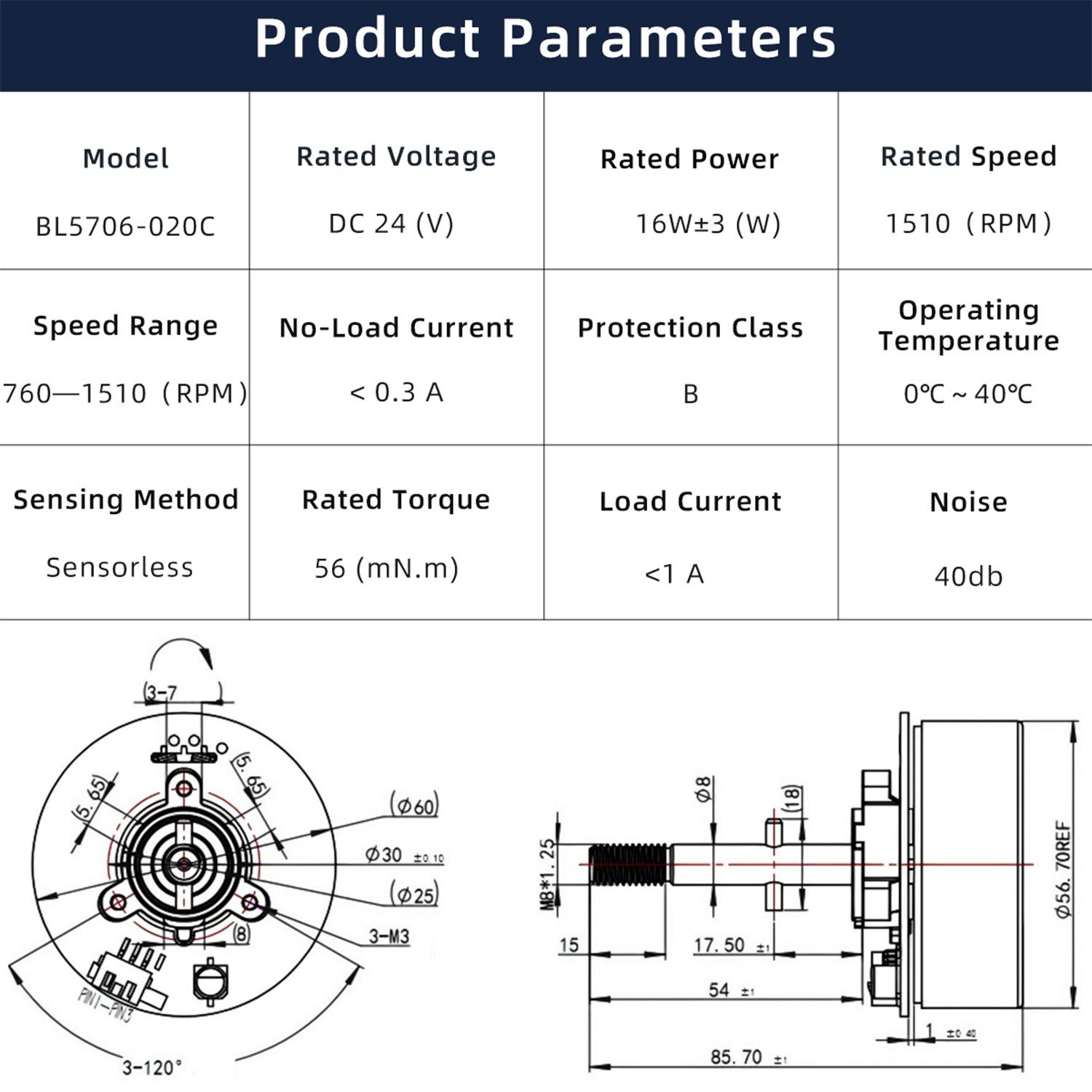

| BL5706-020C | 24 | 760~1510±5% | < 0.3 | 16±3 | < 1.0 | 56 |
| BL5710-003B | 12 | 900±5% | < 0.3 | 12±3 | < 1.6 | 70 |
| BL5710-044E | 24 | 200~1450±5% | < 0.3 | 18±3 | < 1.5 | 73 |
| BL5808-006D | 24 | 600~2950±20 | < 0.3 | 30±3 | < 1.8 | 65 |
| BL5808-092A | 24 | 300~2100±5% | < 0.3 | 14±3 | < 1.0 | 51.6 |
| BL6108N-092C | 24 | 300~1800±5% | < 0.3 | 16±3 | < 1.0 | 56.7 |
| BL6110-006C | 24 | 200~2400±5% | < 0.3 | 33±3 | < 1.8 | 150 |
| BL6110-016A-1 | 24 | 500~2000±5% | < 0.3 | 25±3 | < 1.8 | 90 |
| BL6110-023A | 24 | 250~1000±5% | < 0.3 | 25±4 | < 1.8 | 100 |
| BL6110-027A | 12 | 300~1350±5% | < 0.3 | 15±4 | < 1.8 | 70 |
| BL6110-059A | 12 | 300~1100±5% | < 0.3 | 15±4 | < 1.8 | 71 |
| BL6110MB-01 | 24 | 400~2000±5% | < 0.3 | 25±3 | < 1.8 | 90 |
All motors can be customized in torque/voltage/size etc.Pls contact us for more details and requirements
1.Customization of size and Structure | 2. Performance parameter customization | 3. Customized functions and options |
4. Material and process selection | 5. Coil and magnet configuration | 6. Customization of leads and connectors |
