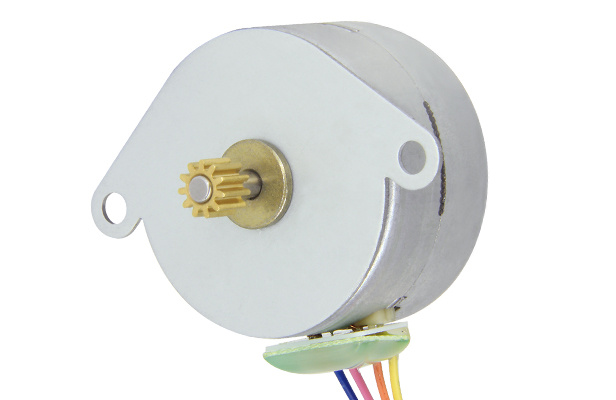

MAINTEX Product Catalog
Product description
Driving Voltage (V) |
Resistance Resistance (Ω) |
Inductance Inductance (mH) |
Step Angle Step Angle（°） |
Maximum Pull-in Frequency Max. Pull-in Frequency (Hz)
|
Maximum Pull-out Frequency Max. Pull-out Frequency (Hz)
|
Holding Torque Holding Torque (gf.cm)
|
Pull Out Torque Pull Out torque (gf.cm) |
Detent Torque Detent Torque (gf.cm) |
24 | 10 | 14 | 7.5 | ≥700 | ≥1050 | ≥400 | ≥100 | 100 |
