MAINTEX Product Catalog

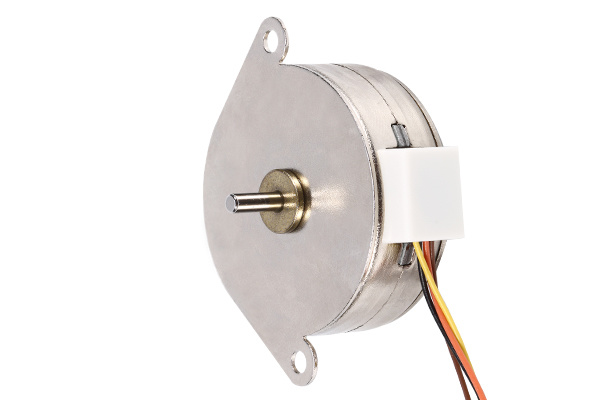

Product description
Driving Voltage Driving Voltage (V) |
Resistance Resistance (Ω) |
Inductance Inductance (mH) |
Step Angle Step Angle（°） |
Maximum Self-Starting Frequency Max. No Load Response (PPS) |
Maximum Response Frequency Max. Slew Speed (PPS) |
Holding Torque Holding Torque (gf.cm)
|
Pull-out Torque Pull Out torque (gf.cm) |
Detent Torque Detent Torque (gf.cm) |
24 | 16 | 17 | 3.75 | ≥700 | ≥900 | 1200 | 100 | 100 |
